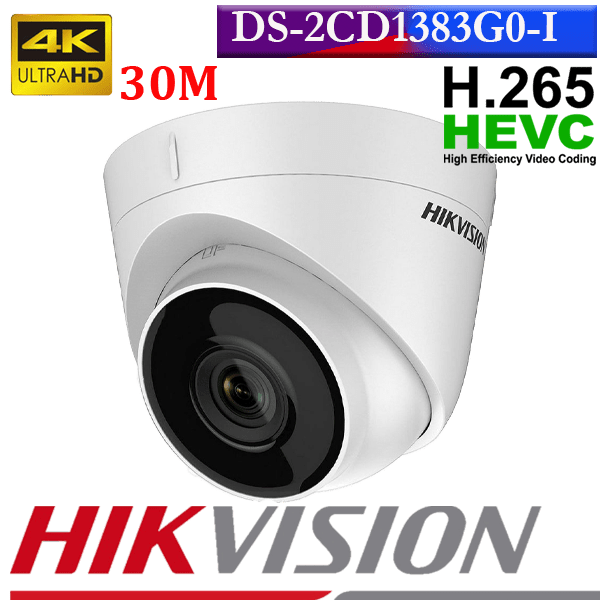

8mp 4k dome ip camera DS-2CD1383G0-I

Original price was: රු46,000.00.Current price is: රු32,850.00.

8mp 4k dome ip camera DS-2CD1383G0-I

4K Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
Share the love
84 / 100



Feel free contact us:-

0112-804905

0777-444-827

0777-444-543

0777-307-890

Compare
Share the love
84 / 100

8mp 4k dome ip camera DS-2CD1383G0-I

n   Specification
Camera
Image Sensor 1/2.5″ Progressive Scan CMOS
Min. Illumination 0.01 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 98°
Aperture F2.0
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265
Sub-stream: H.265/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 supports
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6,
UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Network Storage NAS (NFS, SMB/CIFS)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable
by client software or web browser
Privacy Mask 4 regions of privacy masks
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event Motion detection, video tampering, exception
General
Linkage Method Upload to NAS/FTP, notify surveillance center, send email, trigger recording, trigger
capture
Firmware Version 5.5.104
Web Client Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, hearbeat, password protection, password reset via email
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%
PoE: 802.3af, Type 1 Class 3
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Aluminum alloy body
Camera Dimension Ø110 × 81.25 mm (Ø4.3″ × 3.2″)
Package Dimension 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Camera Weight Approx. 380 g (0.8 lb.)
With Package Weight Approx. 626 g (1.4 lb.)
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU) WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
  • 4 mp colorvu fixed

  • imaging against strong back light

  • technologywater and dust resistant

  • strong back light due
