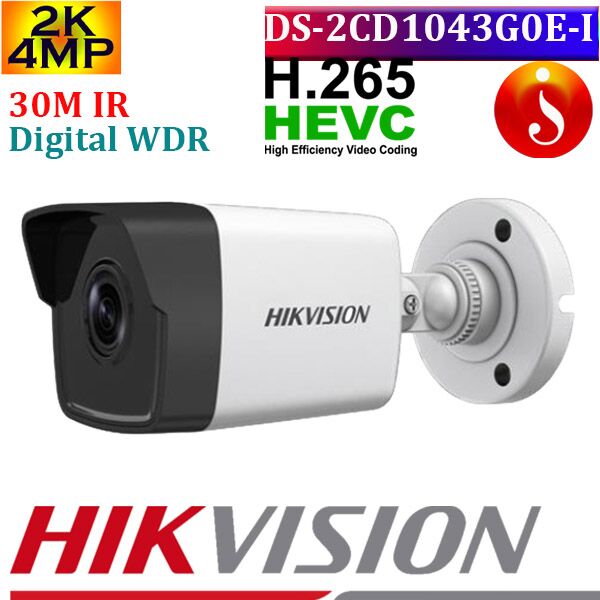

DS-2CD1043G0E-I

Camera DS-2CD1043G0E-I

• Image Sensor1/3″ Progressive Scan CMOS
• Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Day &NightIR Cut Filter
• Wide Dynamic RangeDigital WDR
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• LensFixed lens, 2.8/4 mm
• ApertureF2.0
• FOV

  2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

  4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

• Lens MountM12

• Illuminator
• IR RangeUp to 30 m
• Wavelength850nm

Video

• Max. Resolution2560 × 1440
• Main Stream

  50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

  60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub Stream

  50Hz: 20fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)

• Video Compression

  Main stream: H.265+/H.264+/H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• H.264 TypeBaseline Profile/Main Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps

• Smart Feature-Set
• Basic EventMotion detection, video tampering alarm, exception (illegal login)
• Region Of Interest1 fixed region for main stream
• Linkage MethodUpload to FTP, notify surveillance center, send email


• Image EnhancementBLC, HLC, 3D DNR
• Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule
• SNR> 50dB

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (PROFILE S), ISAPI, SDK
• SecurityPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Approval
• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
• Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• ProtectionIngress protection: IP67 (IEC 60529-2013)

• General
• General FunctionAnti-flicker, heartbeat, mirror, privacy mask
• ResetReset via web browser and client software
• Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
• Power Consumption And Current12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W
• MaterialFront cover: metal, back cover: plastic
• Dimensions

  Camera: 66.2 mm × 67.8 mm × 177.6 mm (2.6″ × 2.7\” × 7\”)

  With package: 216 × 121 × 118 mm (8.5 × 4.8\” × 4.6\”)”

• Camera: approx. 280 g (0.6 lb.)

  With package: approx. 501 g (1.1 lb.)

Hikvision digital WDR 4mp ip camera
