DS-2CD1723G1-IZ

Camera

Image Sensor                           1/2.8″ Progressive scan CMOS

Min. Illumination                     Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)

Shutter Speed                           1/3 s to 1/100, 000 s

Slow Shutter                             Yes

Day &Night                              IR cut filter

Wide Dynamic Range               Digital WDR

Angle Adjustment                    Pan: 0° to 355°, tilt: 0° to 75°

DNR3D DNR

Lens

Lens                                         2.8 to 8 mm

Auto-Iris                                   No

Aperture                                   F1.9

Focus                                       Without -Z model: Manual,-Z model: Auto

FOV                                          Horizontal field of view: 111° to 54.7°,Vertical field of view: 57.8° to 30.5°,Diagonal field of view: 134° to 63°

Lens Mount                              Φ14

Illuminator

IR Range                                   Up to 20 m

Wavelength                              850 nm

DS-2CD1723G1-IZ

Video

Max. Resolution                       1920 × 1080

Main Stream                             50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream                               50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression                  Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG

H.264 Type                               Baseline Profile/Main Profile/High Profile

H.265 Type                               Main Profile

Video Bit Rate                          32 Kbps to 8 Mbps

Audio

Audio Compression                  G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate                          64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Environment Noise Filtering     Yes

Audio Sampling Rate                8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Region Of Interest                    1 fixed region for main stream


Image Enhancement                 BLC, 3D DNR

Image Setting                           Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch                     Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

Network Storage                      Support Micro SD/SDHC/SDXC card (128G), local storage and ANR

Protocols                                  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API                                           ONVIF (PROFILE S, PROFILE G), ISAPI

DS-2CD1723G1-IZ

Simultaneous Live View                       Up to 6 channels

User/Host                                 Up to 32 users,3 levels: Administrator, Operator and User

Client                                       iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser                            IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger                           Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

Communication Interface         1 RJ45 10M/100M self-adaptive Ethernet port

Audio                                       -S model: Built-in mic, 1 input (line in), 1 output (line out),Without -S model: Built-in mic

Alarm                                       1 alarm input, 1 alarm output

Video Output                           1Vp-p composite output (75 Ω/BNC)

On-Board Storage                     Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+                                     Main stream supports

H.265+                                     Main stream supports

General

Firmware Version                     5.5.82

General Function                      One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

ResetYes

Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug

PoE (802.3af, class 3)

Power Consumption And Current

-Z model: 12 VDC, 0.8 A, max. 10 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W

Without -Z model: 12 VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 8 W

MaterialBubble: plastic, front cover: plastic, bottom base: metal

Dimensions

Camera: Φ 121 mm × 92 mm (4.8″ × 3.6\”)

With package: 150 mm × 150 mm × 141 mm (5.9 × 5.9\” × 5.6\”)”

Camera: Approx. 400 g (0.9 lb.)

With package: Approx. 700 g (1.5 lb.)

Interface Protection                  IP66, IK10

ds-2cd1743g0-iz

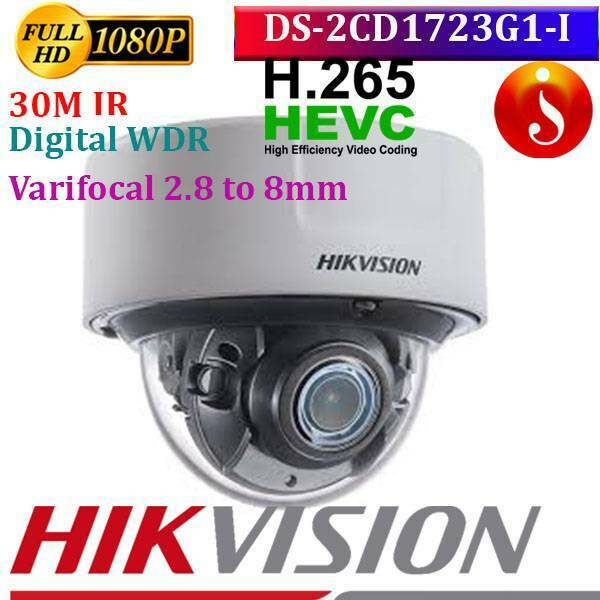

Hikvision 2 megapixel motorized varifocal dome ip camera
