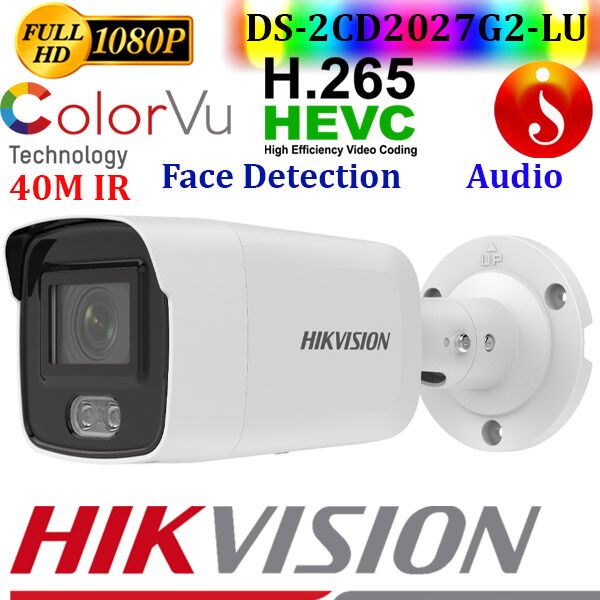

DS-2CD2027G2-LU

CameraDS-2CD2027G2-LU

• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Iris TypeFixed
• Lens Type & FOV

  2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°

  4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

  6 mm, horizontal FOV 55°, vertical FOV 30°, diagonal FOV 63°

• Depth Of Focus

  2.8 mm, 1.7 m to ∞

  4 mm, 2.3 m to ∞

  6 mm, 5.3 m to ∞

• ApertureF1.0
• Lens MountM12

• DORI
• DORI

  2.8 mm, D: 46 m, O: 18 m, R: 9 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

  6 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m

• Illuminator

• White Light Range40 m
• Smart Supplement LightYes

• Video

• Max. Resolution1920 × 1080
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio

• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network

• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• SNR≥ 52 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface

• Built-In Microphone-U: Yes
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart EventScene change detection

• Deep Learning Function
• Face CaptureYes
• Perimeter Protection

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Supports human and vehicle targets classification

• General

• Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
• Firmware VersionV5.5.113
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software ResetYes
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, 36 V to 57 V, Class 3

• Power Consumption And Current

  12 VDC, 0.5 A, max. 6.0 W

  PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

• Power InterfaceØ5.5 mm coaxial power plug
• Camera Dimension215.2 mm × 78.8 mm × 78.6 mm (8.5″ × 3.1″ × 3.1″)
• Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Camera WeightApprox. 680 g (1.5 lb.)
• With Package WeightApprox. 1000 g (2.2 lb.)

• Approval

• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)

Special face detection AI camera
