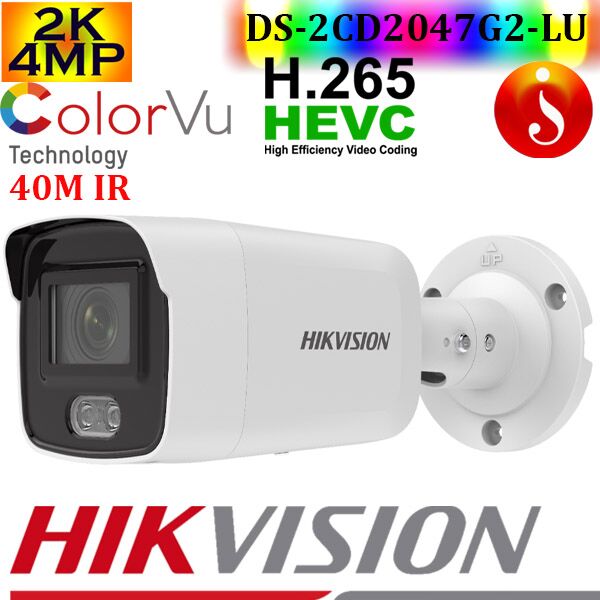

Best Human sensor DS-2CD2047G2-LU

Camera DS-2CD2047G2-LU

• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range130 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Iris TypeFixed
• Depth Of Focus

  2.8 mm, 2.5 m to ∞

  4 mm, 3.5 m to ∞

  6 mm, 7.5 m to ∞

• Lens Type & FOV

  2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

  4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

  6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

• ApertureF1.0
• Lens MountM16

• DORI
• DORI

  2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m

  4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

  6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

• Illuminator

• Supplement Light TypeWhite Light
• White Light Range40 m
• Smart Supplement LightYes

• Video

• Max. Resolution2688 × 1520
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio

• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network

• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• SNR≥ 52 dB
• Day/Night SwitchAuto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface

• Built-In Microphone-U: Yes
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart EventScene change detection

• Deep Learning Function
• Face CaptureYes
• Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection

• General

• Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
• Firmware VersionV5.5.112
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software ResetYes
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Power Consumption And Current

  12 VDC, 0.5 A, max. 6 W

  PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

• Power InterfaceØ5.5 mm coaxial power plug
• Camera Dimension215.2 mm × 78.8 mm × 78.6 mm (8.5″ × 3.1″ × 3.1″)
• Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Camera WeightApprox. 695 g (1.5 lb.)
• With Package WeightApprox. 1090 g (2.4 lb.)

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);

  CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);

  LOA (IEC/EN 60950-1)

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
