DS-2CD2T27G2-L

• Camera
• Image Sensor                                       1/2.8″ Progressive Scan CMOS
• Max. Resolution                                   1920 × 1080
• Min. Illumination                                 Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time                                        1/3 s to 1/100,000 s
• Angle Adjustment                                Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Lens Type                                             Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

6 mm, horizontal FOV 55°, vertical FOV 30°, diagonal FOV 63°

• Lens Mount                                          M12
• Iris Type                                               Fixed
• Aperture                                               F1.0
• Depth Of Field

2.8 mm, 1.7 m to ∞

4 mm, 2.3 m to ∞

6 mm, 5.3 m to ∞

• DORI
• DORI

2.8 mm, D: 46 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

6 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m

• Illuminator
• Supplement Light Type                                    White Light
• Supplement Light Range                      60 m
• Smart Supplement Light                       Yes

• Video
• Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

• Video Compression

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

• Video Bit Rate                                      32 Kbps to 8 Mbps
• H.264 Type                                           Baseline Profile/Main Profile/High Profile
• H.265 Type                                           Main Profile
• Bit Rate Control                                    CBR/VBR
• Scalable Video Coding (SVC)                H.264 and H.265 encoding
• Region Of Interest (ROI)                       1 fixed region for main stream and sub-stream

• Network
• Protocols                                              TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live View                                   Up to 6 channels
• API                                                       Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host                                             Up to 32 users. 3 user levels: administrator, operator and user
• Security                                                Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage                                  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client                                                   iVMS-4200, Hik-Connect, Hik-Central
• Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

DS-2CD2T27G2-L

• Image
• Image Parameters Switch                     Yes
• Image Settings                                     Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch                                 Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)                120 dB
• SNR                                                      ≥ 52 dB
• Image Enhancement                             BLC, HLC, 3D DNR

• Interface
• Ethernet Interface                                 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage                                 Built-in memory card, support microSD/SDHC/SDXC card, up to 256 GB
• Reset Key                                             Yes

• Event
• Basic Event                                           Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection

• Linkage                                                            Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

• Deep Learning Function
• Face Capture                                        Yes

• General
• Power

12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

• Dimension                                           Ø105 mm × 289.5 mm (Ø4.1″ × 11.4″)
• Package Dimension                              385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Approx. 1090 g (2.4 lb.)
• With Package Weight                           Approx. 1584 g (3.5 lb.)
• Storage Conditions                               -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions       -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function                                  Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

• Approval
• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)

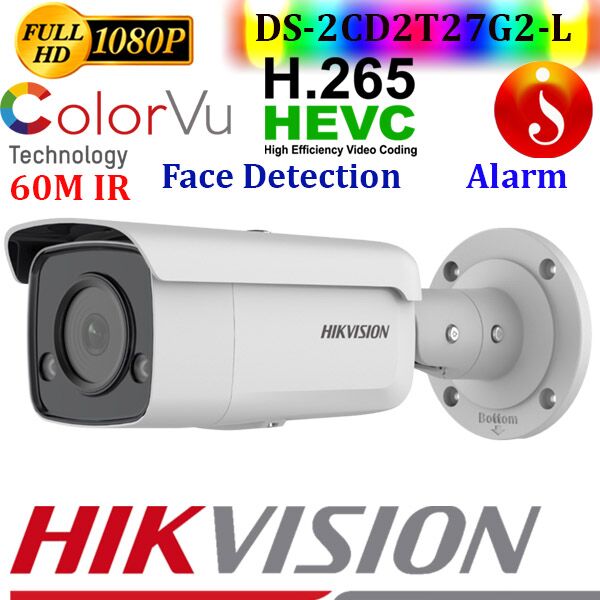

Hikvision Colorvu  IPC DS-2CD2T27G2-L
