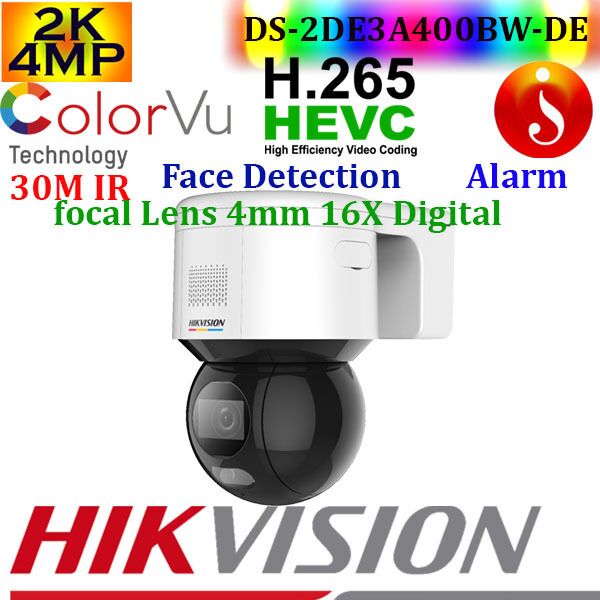

DS-2DE3A400BW-DE

• Camera
• Image Sensor                                       1/1.8″ progressive scan CMOS
• Min. Illumination                                 Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• Shutter Speed                                       1/1 to 1/30,000 s
• Day & Night                                         24/7 colorful imaging
• Zoom                                                   16x digital
• Max. Resolution                                   2560 × 1440

• Lens
• Focal Length                                        4 mm
• FOV

Horizontal field of view: 88.7°

Vertical field of view: 46.5°

Diagonal field of view: 105.0°

• ApertureF1.0

• Illuminator
• Supplement Light Type                                    White Light
• Supplement Light Range                      White Light Distance: up to 30 m

• PTZ
• Movement Range (Pan)                                    350°
• Movement Range (Tilt)                                    0° to 90°
• Pan Speed                                            Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
• Tilt Speed                                             Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional Pan                                  Yes
• Presets                                                 300
• Power-Off Memory                               Yes
• Park Action                                          Preset, patrol scan
• 3D Positioning                                     Yes
• PTZ Status Display                               Yes
• Preset Freezing                                     Yes
• Scheduled Task                                                Preset, patrol scan, dome reboot, dome adjust, aux output

• Video
• Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

• Scalable Video Coding (SVC)                H.264 and H.265 encoding
• Region Of Interest (ROI)                       8 fixed regions for each stream

• Audio
• Audio Compression                              G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Environment Noise Filtering                 Yes

• Network
• Network Storage                                  NAS (NFS, SMB/ CIFS)
• Protocols                                  IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APII                                          SAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
• Simultaneous Live View                       Up to 20 channels
• User/Host                                 Up to 32 users. 3 levels: Administrator, Operator and User
• Security                                    Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
• Web Browser                            IE 10+, Chrome 57+, Firefox 52+, Safari 12+

• Image
• Day/Night Switch                     Day, night, auto, scheduled-switch
• Image Enhancement                 BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR)    120 dB WDR
• Defog                                       Digital defog
• Image Stabilization                  EIS
• Regional Exposure                    Yes
• Image Settings                         Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters Switch         Yes
• Privacy Mask                            Up to 24 masks (8 masks for each scene)
• SNR＞52 dB

DS-2DE3A400BW-DE

• Interface
• Built-In Speaker                        1 built-in speaker
• Power Output                           12 VDC; < 60 mA
• Ethernet Interface                     1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
• On-Board Storage                     Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
• Alarm                                       1 input, 1 output
• Audio                                       1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• RS-485                                      1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset                                        Yes

• Event
• Basic Event                               Video tampering alarm, motion detection, alarm input, alarm output, exception
• Smart Event                              Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
• Alarm Linkage                          Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing

• Deep Learning Function
• Face Capture                            Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
• Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

• General
• General Function                      Mirror, password protection, watermark, IP address filter
• Power

12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

Max. 14 W (including max. 4 W for white light)

• Operating Condition                Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
• Demist                                     Yes
• Dimension                               179.3 mm × 120 mm × 182 mm (7.06″ × 4.72″ × 7.71″)
• Approx. 1.125 kg (2.48 lb.)

• Approval
• Protection                                IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
