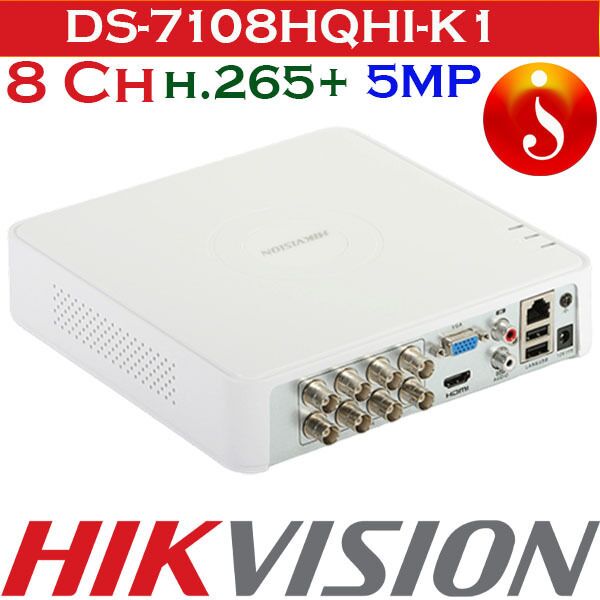

DS-7108HQHI-K1
Original price was: රු27,000.00.රු22,800.00Current price is: රු22,800.00.
8-ch 1080p Mini 1U H.265 DVR
- 8 channels and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected
- Hikvision 8 channel dvrDS-7108HQHI-K1
- https://www.hikvision.com/en/products/Turbo-HD-Products/DVR/Value-Series/ds-7116hqhi-k1/?q=ds-7116hqhi-k1&position=1
Hikvision 8 channel dvr
DS-7108HQHI-K1
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution When 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream :,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),
Sub-stream : ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps to 6 Mbps
- Dual Stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bit Rate 64 Kbps
Video And Audio
- IP Video Input 4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input Support
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback 8-ch
- HDTVI Input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS- 7116HQHI-K1.
VGA/HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
- Remote Connections 64
- Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface 1, RJ45 10M/101M self-adaptive Ethernet interface
Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 6 TB capacity for each disk
- Alarm In/Out N/A
- USB Interface Real panel: 2 × USB 2.0
General
- Power Supply 12 VDC
- Consumption (Without HDD) ≤ 12 W
- Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimensions (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
- Weights (Without HDD) ≤ 1 kg (2.2 lb)
