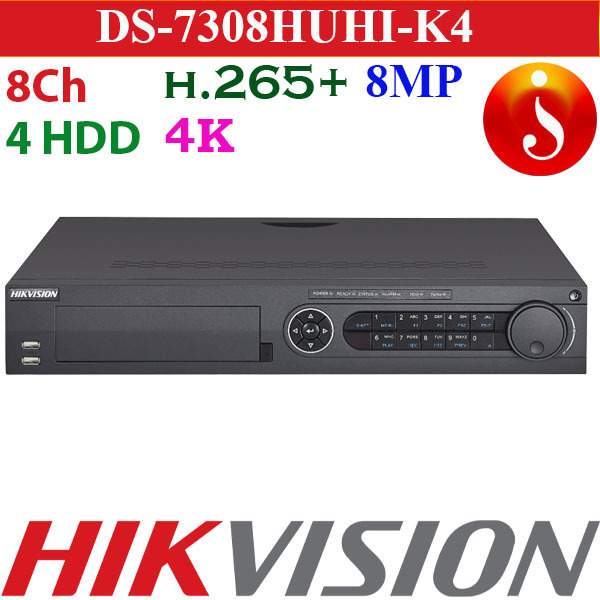

DS-7308HUHI-K4
Original price was: රු193,000.00.රු160,990.00Current price is: රු160,990.00.
DS-7308HUHI-K4
8-ch 5 MP 1.5U H.265 DVR
- 8 channels and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected
- Supports POS triggered recording and POS information overlay
- Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
DS-7308HUHI-K4
-
Recording
- Video Compression             H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution            8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate          Â
- Main stream:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 8MP@8fps/5MP@12fps;4MP@15fps;3MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps
- Sub-stream:
- WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video Bitrate                  32 Kbps to 10 Mbps
- Dual-Stream                   Support
- Stream Type                  Video, Video & Audio
- Audio Compression            G.711u
- Audio Bitrate                  64 Kbps
DS-7308HUHI-K4
- Video And Audio
- IP Video Input                 8-ch (up to 32-ch) Up to 8 MP resolution Support                                                         H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input            8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input                 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50,                                     720p60
- AHD Input                   5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
- HDCVI Input                 4 MP, 720p25, 720p30, 1080p25, 1080p30
- CVBS Input                   Support
- CVBS Output                 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output               1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×                                     768/60Hz
- VGA Output                  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×                                     768/60Hz
- HDMI 2                      Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×                                      1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Input                   4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output                 2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio               1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous Playback        8-chÂ
DS-7308HUHI-K4Â Network
- Remote Connection          128
- Network Protocol            TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,                                UPnP™, HTTPS, ONVIF, SNMP
- Network Interface2,          RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATAÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4 SATA interfaces
- ESATAÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Support
- Capacity                    Up to 10 TB capacity for each disk
- Serial Interface              RS-232, RS-485 (full-duplex), Keyboard
- Alarm In/Out1Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 6/4
- USB Interface               Front panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0
- General
- Power Supply               100 to 240 VAC
- Consumption               ≤ 45 W
- Working Temperature       -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity          10% to 90%
- Dimension                  (W × D × H)445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
-                             ≤ 5 kg (11.0 lb)
