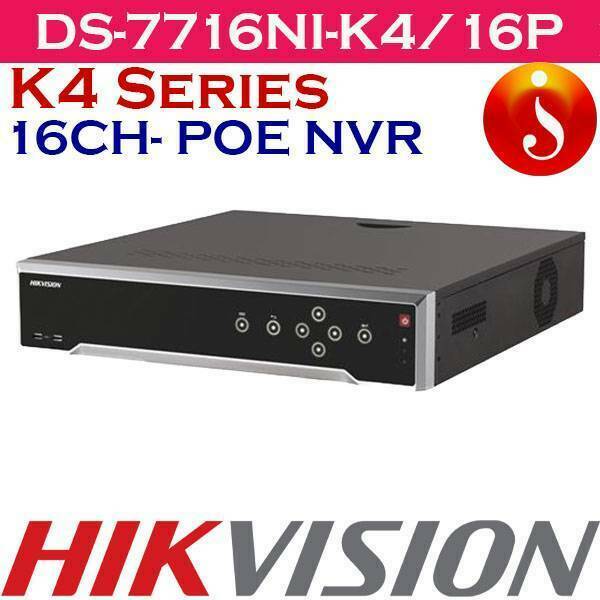

DS-7716NI-K4/16P
16-ch 1.5U 16 PoE 4K NVR
- Up to 16 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch @ 1080p decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet(PoE) interfaces
- Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Channel-zero function ensures smooth remote live view and playback in low bandwidth environments
16 channel 4 Hard disk 4K nvr
DS-7716NI-K4/16p
Video And Audio
IP Video Input                         16-ch
Incoming Bandwidth               160 Mbps
Outgoing Bandwidth               160 Mbps
HDMI Output              4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 ×                                     1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output                            1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output                          1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio                      1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format                    H.265/ H.265+/H.264/H.264+/MPEG4
Recording Resolution              8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
Synchronous Playback             16-ch
Decoding Capability                2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
DS-7716NI-K4/16P
Network
Network Protocol                    TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface                    1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface                                  16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power                                      ≤ 200 W
Standard                                 IEEE 802.3 af/at
Auxiliary Interface
Serial Interface                        1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
SATAÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4 SATA interfaces
Capacity                                  Up to 6 TB capacity for each HDD
Alarm In/Out                           16/4
USB Interface                           Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply                          100 to 240 VAC, 50 to 60Hz, 1 A
Consumption                          ≤ 20 W (without enabling PoE and HDD)
Working Temperature             -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity                  10 to 90 %
Dimension (W × D × H)                      445 × 400 × 71 mm ( 17.5″× 15.7″ × 2.8″)
≤ 5 kg (11. lb, without HDD)
