Ezviz X5S-16L2 16-24 channel NVR support 5 Megapixel 16-24 wifi IPC
Ezviz X5S-16L2 16-24 channel NVR support 5 Megapixel 16-24 wifi IPC
| Model | CS-X5S-16L2 | |
|---|---|---|
| IPC Access Capability | ||
| IPC Access Capability | Sixteen IP cameras, each up to 5 MP | |
| Network Parameter | ||
| Uplink Ethernet Port | One 10/100/1000M adaptable Ethernet interface | |
| Required Access Bandwidth | 200 Mbps | |
| Video Output | ||
| VGA | One channel. Resolution up to 1920 x 1080 / 60HZ | |
| HDMI | One channel (identical to VGA output). Resolution up to 2592 x 1944 / 60 HZ | |
| Audio/Video Codec | ||
| Recording Resolution | 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF | |
| Video Encoding | H.265, H.264 | |
| Decode Playback | Supports sixteen 5 MP IP cameras | |
| Video Recording Management | ||
| Video Recording Modes | Manual video recording; motion detection recording; scheduled video recording; event triggered recording. | |
| Backup Modes | Supports hard disk backup and internet application backup | |
| Playback Modes | Instant Playback; Normal Playback; Event Playback; Tag Playback; Log Event Playback; External File Playback | |
| Special Features | ||
| Facial Recognition | Supports. Works with cameras that support facial recognition | |
| Massive Access Mode | Supports. Can access up to 24 channels with resolution no higher than 2 MP on each channel | |
| Open Protocol | ||
| Open Protocol Support | HIKVISION, ONVIF (V.2.5) | |
| HDD | ||
| Interface Type | Two built-in SATA interfaces | |
| Capability | Supports 1 TB to 8 TB 3.5-inch HDD | |

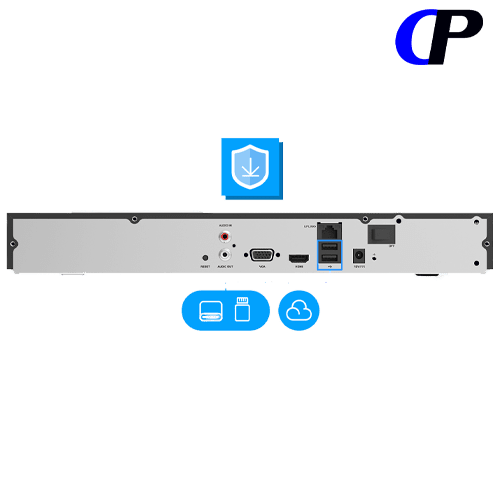

| External Interface | ||
| Audio Output | Supports | |
| Audio Intput | Supports | |
| Hardware Reset | Supports | |
| USB2.0 Interface | 2 | |
Ezviz X5S-16L2 16-24 channel NVR support 5 Megapixel 16-24 wifi IPC
