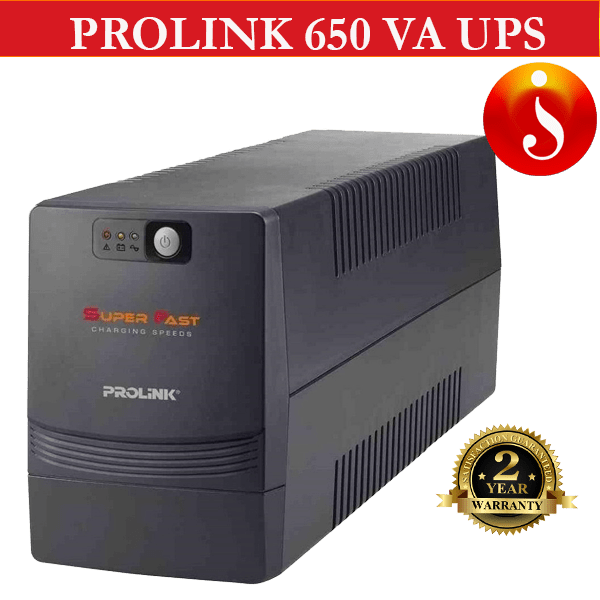

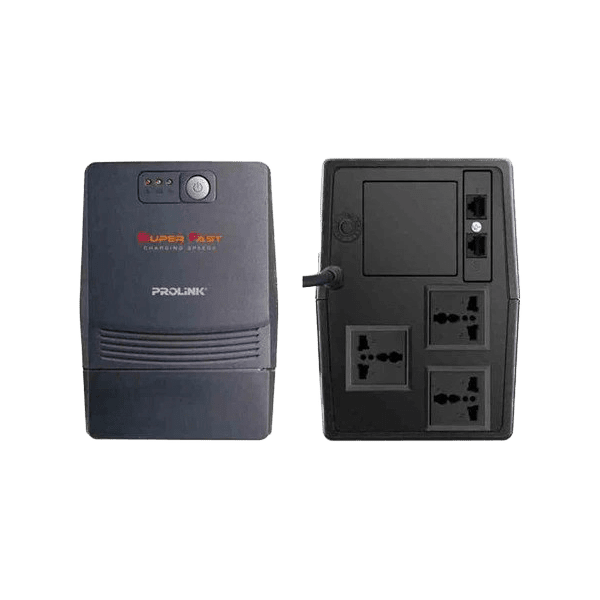

Super Fast Charging Line Interactive Series prolink 650VA UPS
Original price was: රු11,500.00.රු9,850.00Current price is: රු9,850.00.
Super Fast Charging Line Interactive Series prolink 650VA UPS
The PRO701SFC is a single-phase input/ single-phase output Line-Interactive UPS system with Prolink ’s latest super-fast charging technology.
Simulated sine wave
Cold start function
Microprocessor control
Off-mode charging
USB communication port (optional)
Super Fast Charging Line Interactive Series prolink 650VA UPS
Capacity | 650VA |
Input voltage range | 162 – 290VAC (Single boost) |
140 – 300VAC (Double boost) | |
Input frequency | 50Hz/60Hz (Auto-sensing) |
Input phase | Single phase with ground |
Output voltage range | 220 – 240VAC |
Output battery mode | 220 – 240VAC |
Output frequency | 50Hz ±1% (Battery mode) |
Output waveform | Simulated sine wave (Battery mode) |
Sine wave (AC mode) | |
Batter type and number | 12V/8.2AH x 1pcs |
Battery backup time | 8 – 20 mins depending on load |
Battery recharge time | 2-4 hours recover to 90% capacity |
Interface | RS232, USB port, RJ45/RJ11 (Optional) |
Display | LED/LCD Optional |
Alarm | Batt. mode, low battery, overload, fault, etc |
Short circuit protection | Yes (Line mode & battery mode) |
Surge protection | Yes |
Protection/ monitoring alarm | Audible & visual |
Overload protection | Line mode: |
100 – 120% 1 min change to fault mode | |
>120% change to fault mode immediately | |
Battery mode: | |
100 – 120% 1 min change to fault mode | |
>120% change to fault mode immediately | |
Dimensions | Product |
286mm (D) x 96mm (W) x 138mm (H) | |
With packaging | |
NA | |
Weight | |
Product | |
4.3 kg | |
With packaging | |
NA |
lineinteractive ups system with prolinks
with prolink latest superfast
How long does it take to charge a 650VA UPS battery? 2 to 4 hours
How to charge a Prolink UPS? just plug to the ac socket
How do I turn off Prolink UPS? press the power button
prolink ups price in Sri lanka
input singlephase output lineinteractive
Weight | 4.5 kg |
---|---|
UPS Brand | Prolink |
UPS Capacity | 650 VA |
UPS Type | Line-Interactive |
