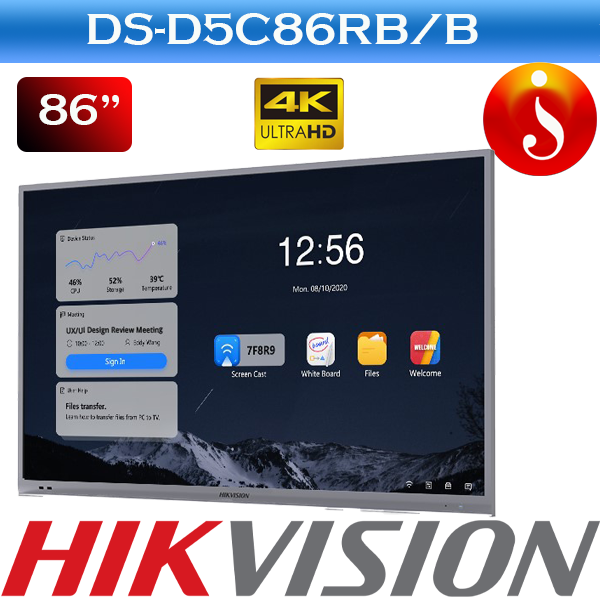

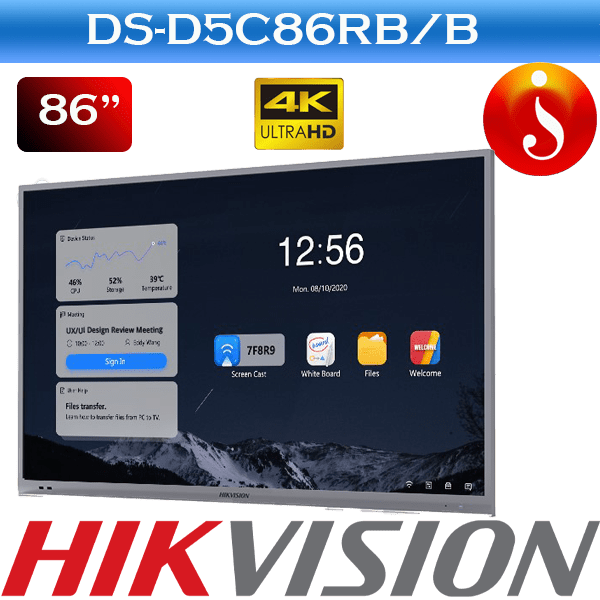

4K Hikvision 86-inch Interactive Display wifi smart board DS-D5C86RB/B
Original price was: රු708,000.00.රු628,500.00Current price is: රු628,500.00.
4K Hikvision 86-inch Interactive Display wifi smart board DS-D5C86RB/B
86-inch 4K Interactive Display
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
- EDLA Certified
4K Hikvision 86-inch Interactive Display wifi smart board DS-D5C86RB/B
| n Specification | ||
| Product Model | ||
| Product Model | DS-D5C86RB/B | |
| Display | ||
| Screen Size | 86 inch | |
| Backlight | DLED | |
| Pixel Pitch | 0.1645（H）× 0.4935（V）mm | |
| Resolution | 3840 × 2160 @60 Hz | |
| Brightness | 400 cd/m² （Typ.） | |
| Color Depth | 10 bit | |
| Display Color | 1.07 G | |
| Response Time | 5 ms | |
| Panel Type | VA | |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
|
| Color Gamut | 72% NTSC (CIE1931) (Typ.) | |
| Refresh Rate | 60 Hz | |
| Viewing Angle | 178° (H)/178° (V) | |
| Aspect Ratio | 16:9 | |
| Surface Hardness | 9H (Pencil) 7 (Mohs) |
|
| Surface Glass | Anti-Glare Glass | |
| Surface Haze | 25% Haze | |
| Glass Bonding Method | Zero Lamination | |
| Display Area | 1895.04mm ╳ 1065.96mm | |
| Working Duration | 7 × 16 H | |
| Transmittance | 88% ± 3 | |
| Lifespan | 50,000 hours | |
| Touch | ||
| Type | Infrared Touch Screen | |
| Touch Point | Up to 50-point multi-touch | |
| Touch Response Time | ≤ 2 ms | |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) | |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) | |
| Touch Resolution | 32768 × 32768 | |
| Built-in System | ||
| Operation System | Android 14.0 | |
| Memory | 8 GB | |
| Built-in Storage | 128 GB | |
| Processor | Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） | |
| GPU | Mali-G610 MC4 | |
| HDCP Version | 2.3 | |
| Camera | ||
| Pixel | Pixel 48MP for Photos & 8 MP for Video | |
| Camera Function | Support intelligent switching between Android system, OPS, and PC. | |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) | |
| Distortion | ≤2.5% | |
| Camera Resolution Ratio | Up to 4K | |
| Microphone | ||
| Specification | Omni-directional 8-array layout | |
| Mic Function | Echo reduction and smart noise-cancellation | |
| Voice Distance | 12 m | |
| Sampling Rate | 32 K | |
| Mic Depth | 16 bit | |
| Internal Function | ||
| Loudspeaker | Built-in 2 × 20 W+25W loudspeaker; | |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 | |
| NFC | Support screen mirroring by Android phones | |
| Light Sensor | Yes | |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction . | |
| Audio Processing Technology | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
|
| Interface | ||
| Video & Audio Input | HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 | |
| Video & audio output | HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 | |
| Control interface | TOUCH-USB 3.0 × 3, RS232 × 1 | |
| Network Interface | LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
|
| Data Transmission Interface | USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
|
| Power | ||
| Power Supply | 100 to 240 VAC, 50/60 Hz | |
| Standby Consumption | ≤ 0.5 W | |
| Average Consumption | < 205W | |
| Working Environment | ||
| Working Temperature | 0 °C to 40 °C (32 °F to 104°F) | |
| Working Humidity | 10%~90% RH | |
| General | ||

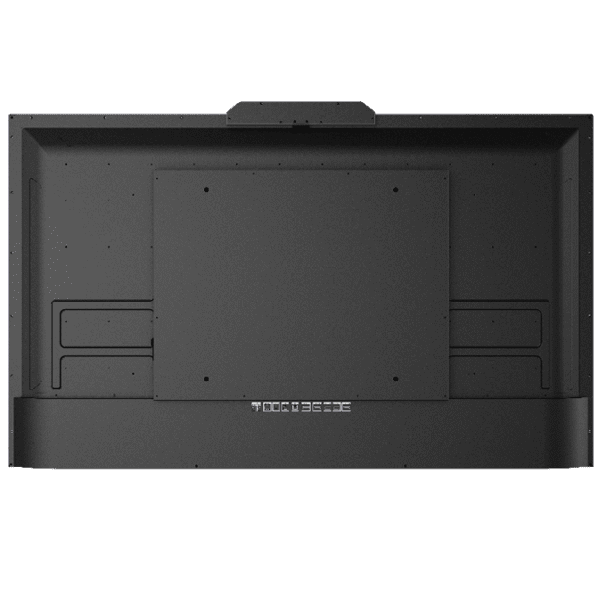

| VESA | 800 mm × 600 mm （4 × M8-25 mm） | |
| Product dimensions | 1960.44 mm × 1173.74 mm × 82.5 mm | |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control. |
|
| Package Dimensions (W × H × D) | 2147 mm × 1335 mm × 213 mm | |
| Net Weight | 65.13 kg | |
hikvision interactive flat panel display
hikvision dsd5c86rbb specs overview uploaded
hikvision dsd5c86rbb interactive flat
panel display with web cam
what are the benefits of smart board?
Smart boards provide interactive, touch-screen capabilities that enhance engagement, collaboration, and learning efficiency in classrooms and workplaces. Key benefits include multimedia integration (videos, apps), multi-user interaction, persistent digital annotation, and easy sharing of content, which improve both teaching methods and business presentations.
Key Benefits of Smart Boards:
- Enhanced Engagement: Interactive,,, touch-sensitive, interfaces with, multi-touch, support encourage, active participation from learners and, presenters.
- Improved Collaboration: Multiple users can write or manipulate content simultaneously, making it ideal for group work and brainstorming.
- Multimedia Integration: Users can display videos, use apps, and access web browsers, incorporating various media types into a single session.
- Seamless Teaching & Training: Teachers can use educational apps, save notes, and use digital tools (like virtual rulers), reducing preparation time and facilitating, improved student outcomes.
- Digital Annotation: Smart ink allows for direct annotation over images, videos, and documents, with the ability to save and share these notes.
- Flexibility and Mobility: Smart boards can act as a whiteboard, projector, and computer screen in one, with many supporting wireless screen sharing from tablets and laptops.
- Efficiency: The ability to instantly pull up documents and save work removes the need for traditional, limited, space-based, note-taking.
Benefits in Educational Settings:
- Improved Student Outcomes: Better engagement through visual and interactive content improves understanding and retention.
- Caters to Learning Styles: Teachers can easily use visual, auditory, and kinesthetic tools, facilitating differentiated instruction.
- Productive Meetings: Better brainstorming and collaboration with interactive whiteboards and screen-sharing tools.
- Professional Image: Modern presentations appear more, professional and engaging, enhancing, communication,.
| Weight | 83 kg |
|---|---|
| TV and Monitor Brand | Hikvision |
| TV Operating System | Android |
| TV or Monitor | Smart Board |
| TV Resolution | 4K |
| TV-Screen size | 86 Inches |
| TV Screen Type | DLED |
