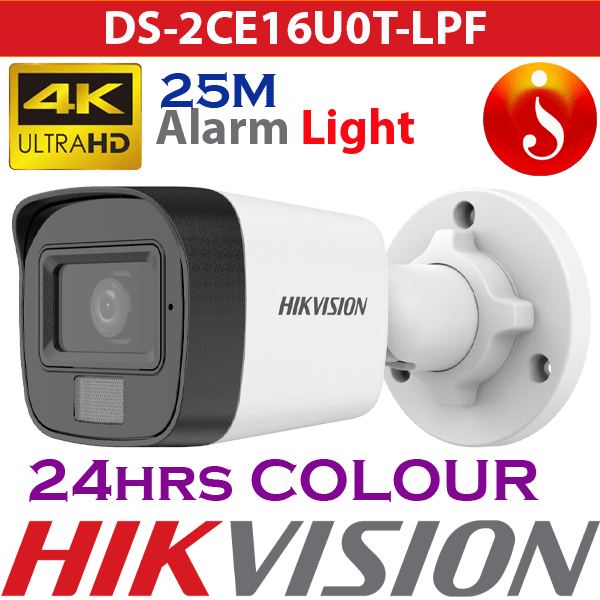

Hikvision 8MP Smart Hybrid Light 25m Camera DS-2CE16U0T-LPF

4K Smart Hybrid Light Fixed Mini Bullet Camera

Compare

80 / 100

Hikvision 8MP Smart Hybrid Light 25m Camera DS-2CE16U0T-LPF

ⁿSpecification
Camera
Image Sensor	4K CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
Day ＆ Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm and 3.6 mm fixed focal lens
Focal Length ＆ FOV	2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127° 3.6 mm, horizontal FOV: 88°, vertical FOV: 44°, diagonal FOV: 105°
Lens Mount	M12
Illuminator
Supplement Light Type	White Light,IR
Supplement Light Range	IR : Up to 25 m White Light : Up to 20 m
Image Settings	Brightness, Sharpness, Smart IR
Frame Rate	TVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps AHD: 8MP@15fps CVI: [email protected], 8MP@15fps CVBS: PAL/NTSC
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR/BLC/HLC/Global
White Balance	Auto/Manual
AGC	Yes
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Power	12 VDC ± 25%, 0.4 A, max. 4.8 W,*You are recommended to use one power adapter to supply the power for one camera.
Material	Plastic
Dimension	138.8 mm × Ø70 mm (5.46″ × Ø2.76″)
Weight	Approx. 160 g (0.35 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
